6400 Panel Saw

Upgrades on the 6400 & 6800 model panel saws compared to our H-Series Panel Saws include:

• An upgraded, worm drive motor providing greater longevity
• 1/64" straight and square cutting tolerance compared to 1/32" on our H-Series
• Machines that's made possible by additional bearings
• Additional steel welded at a diagonal plane adding significant weight to the frame
• A weighted pulley system for pulling the saw motor up and down the guide tubes vs a spring loaded counter balance
• Additional bearings within the motor providing a tighter cutting tolerance
• Aluminum material rollers  instead of red material rollers

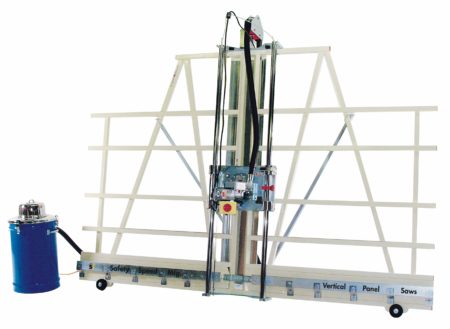

• The 6400 provides a 64" maximum crosscut while the 6800 provides a 74" maximum crosscut. The maximum rip cut (horizontal) is dependent on pushing the panel through Photos are shown shown with a stand, wheels, and a dust kit, which are optional accessories


    Standard Equipment

        3 Hp worm driven heavy-duty saw motor
        10 ft. welded steel frame
        Chrome-plated 1 3/4" guide tubes
        8 Nylatron roller bearing systems
        Adjustable vertical and horizontal rulers
        Quick change from vertical to horizontal cutting
        Thin material pressure guard
        Solid aluminum material rollers
        Enclosed counterweight system
        Integrated dust collection bonnet
        TUV certified to UL/CSA standards
