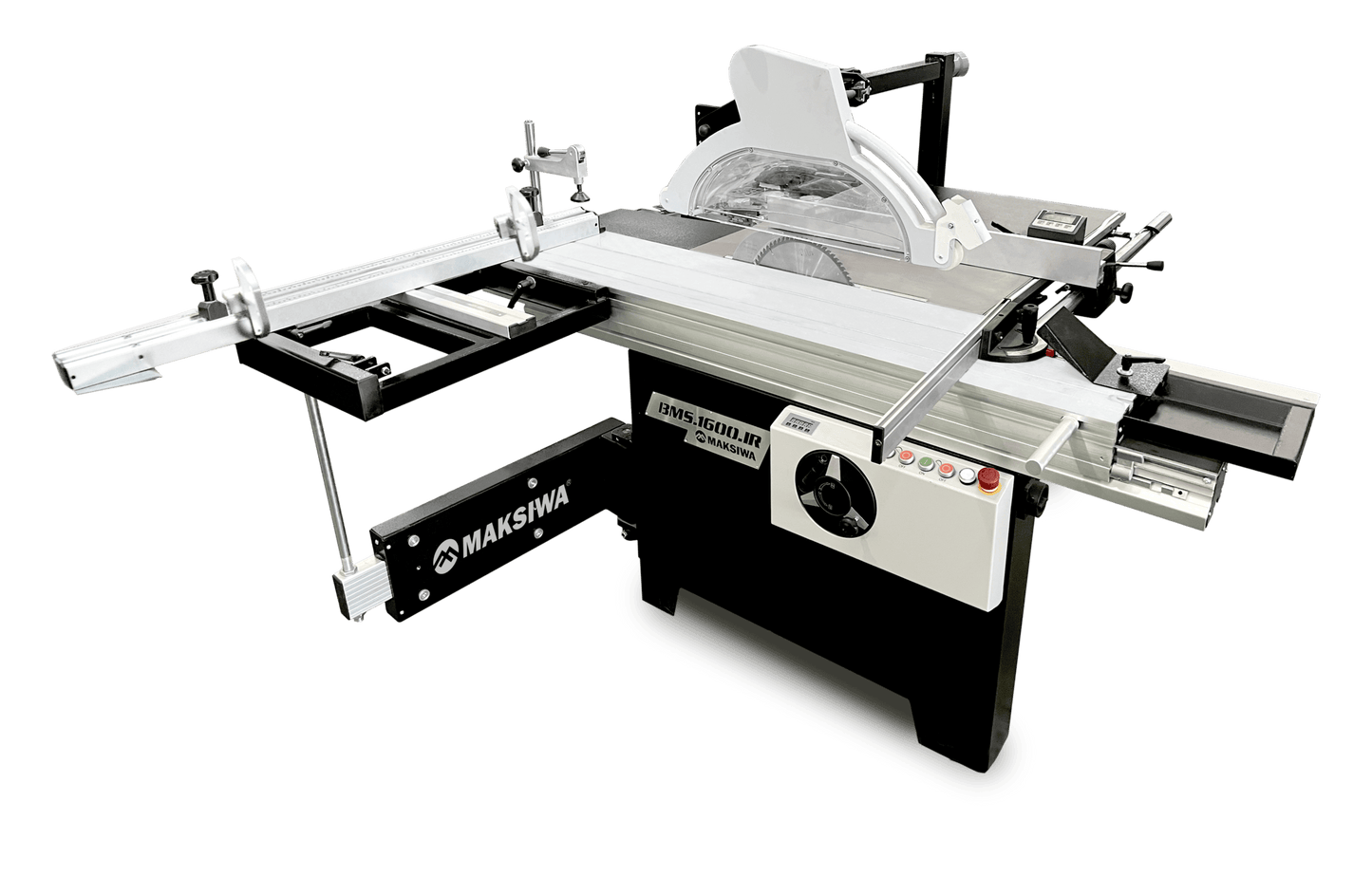

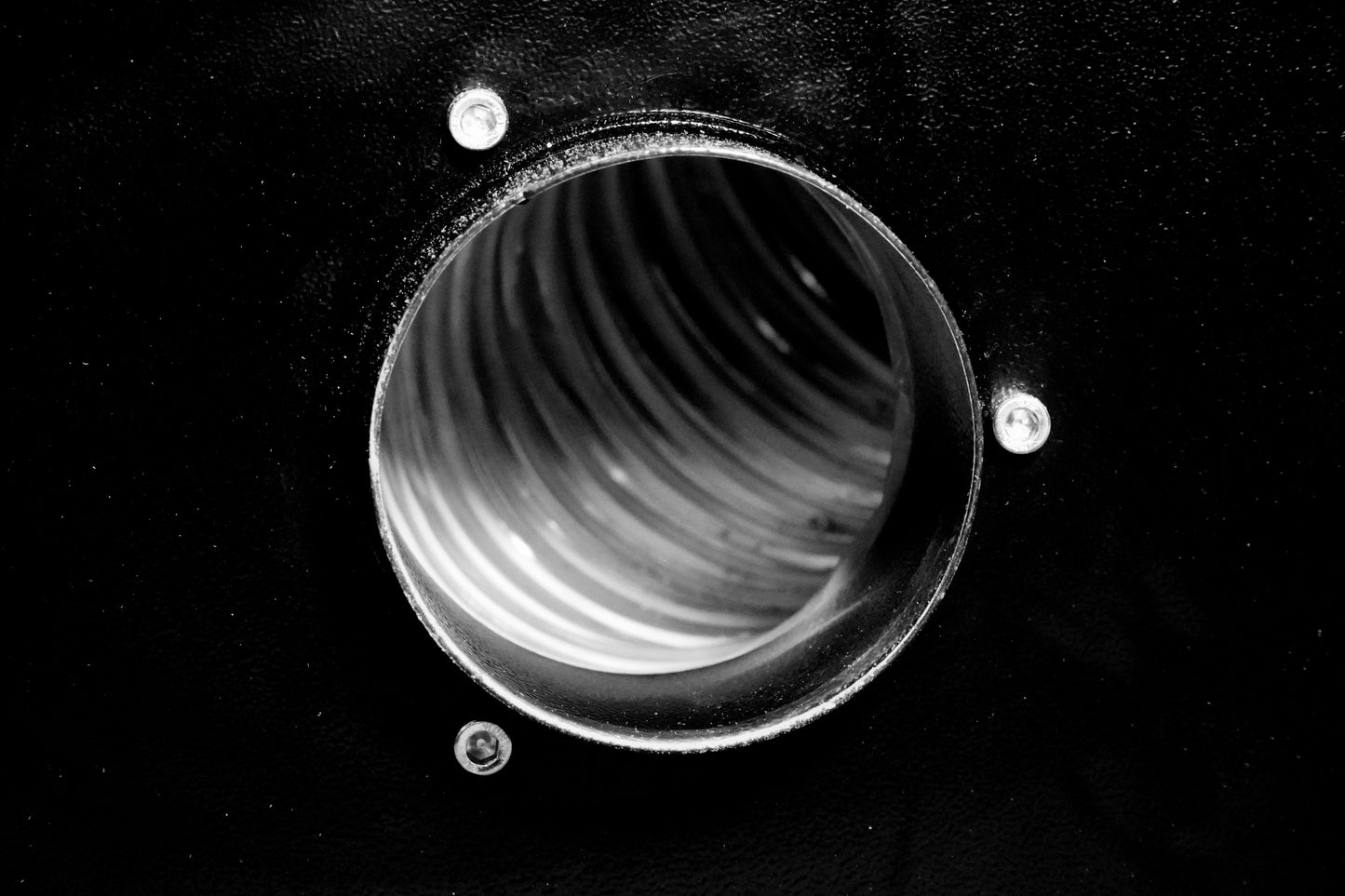

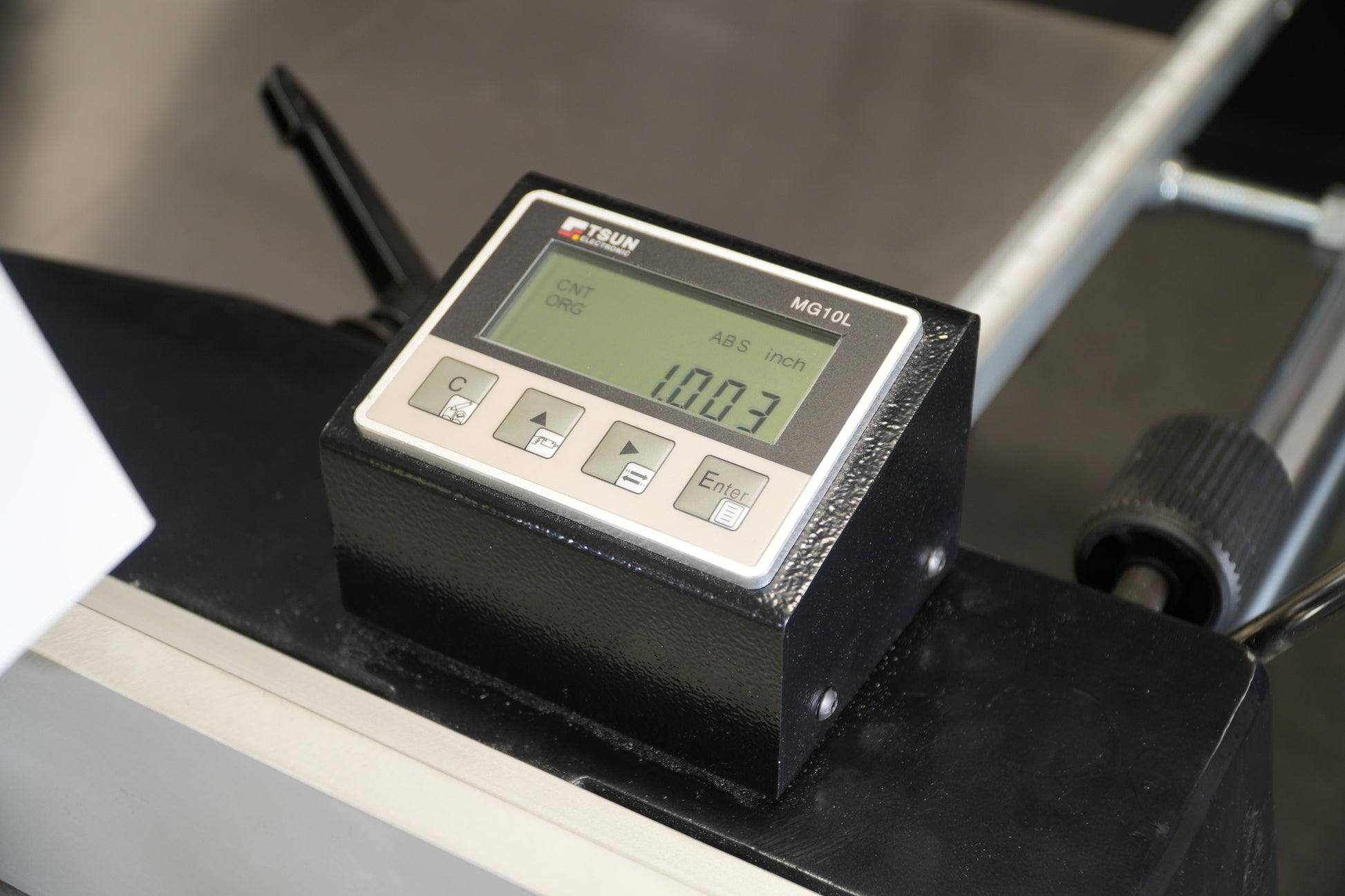

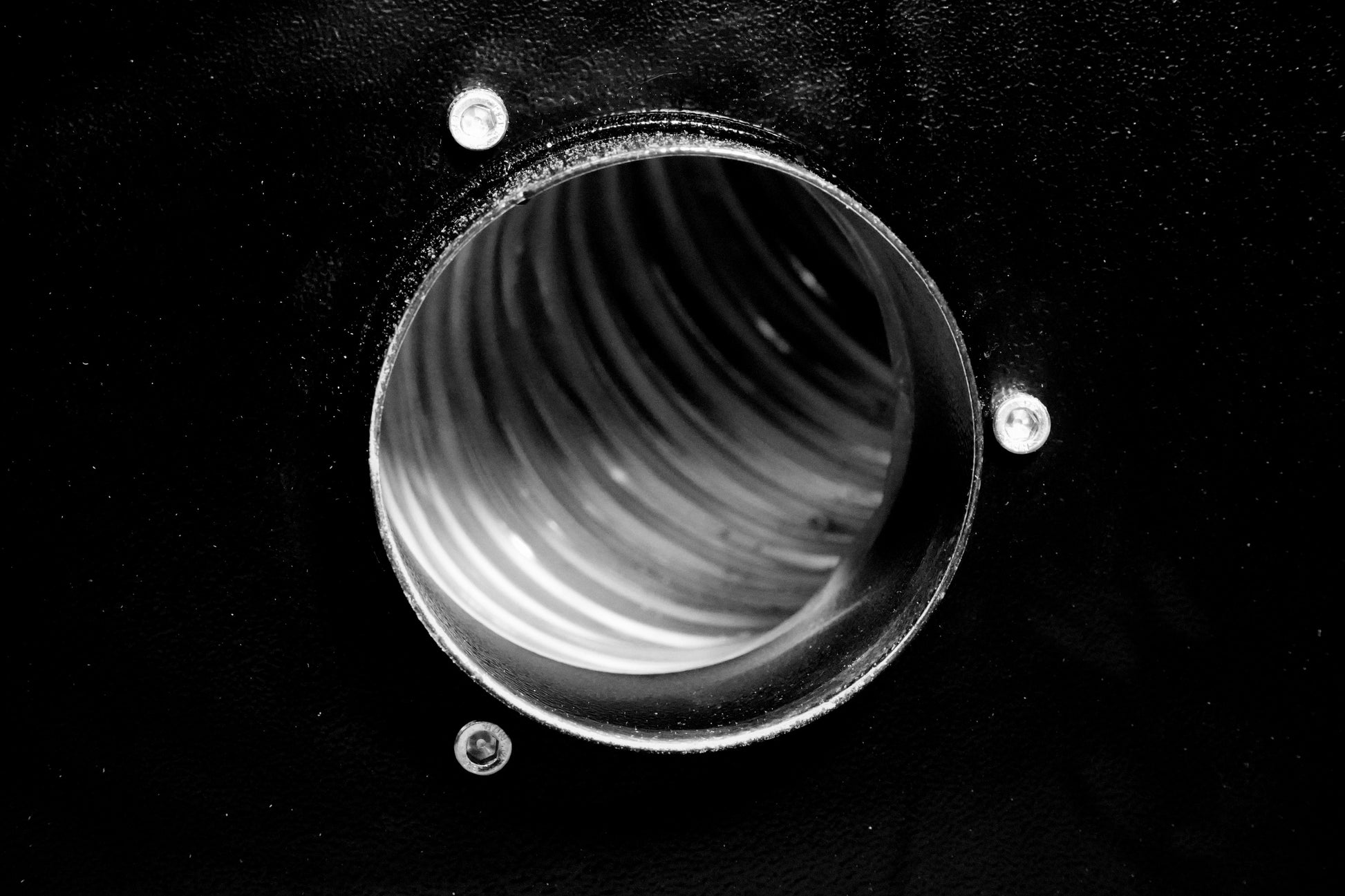

Introducing the New BMS.1600.IR. The BMS series is one of Maksiwa’s top seller sliders that has been completely redesigned from the ground up with improved construction and materials. The new design is more ergonomic and features a more powerful 1HP scoring motor, Digital Rip Fence Readout, adjustable leveling feet, dual blade covers, two flip stops, integrated dust collection exhaust on a swing-away arm, and new soft touch buttons and control panel.
If you have limited space on your shop but is looking for a powerful slider, the new BMS.1600.IR is your choice! This machine boasts a robust 5HP main motor, available in 1 Phase 220V. The anodized aluminum sliding table is designed to ensure durability and longevity, while the European-style 41″ rip fence, built with heavy-duty casting, glides smoothly on a micro-polished solid steel bar. Finding precise measurements is made easy with the included micro-adjustment feature, adding convenience and efficiency to your work. As a testament to our commitment to quality, we offer a comprehensive 2-year warranty on all parts and service, providing you with peace of mind.
Main Motor: 5 HP 4000 RPM 3.7 Kw Max Blade Diameter: 12" | 305mm Main Blade Arbor: 30mm Main Blade Max Cutting Height at 90º: 3 ½” Main Blade Max Cutting Height at 45º: 2 ½” Scoring Motor: 1HP Scoring Motor Blade: 4 ¾” | 120mm Scoring Blade Arbor: ¾” Sliding Table Dimension: 63" x 14" Main Table with Supporting Table: 31.5" x 40" Machine Dimension Collapsed: (LxWxH) 66" x 98" x 42" Crosscut fence max. Collapsed/Extended: 50" / 85" Rip Fence Bar Solid Steel Micro Polished: 1” Max Tilt: 45º Max Cutting Length: 62" Dust Collection Port: 4” Electrical Specs: 1 PH 220V 30 Amps 60Hzs Weight: 638lbs.
