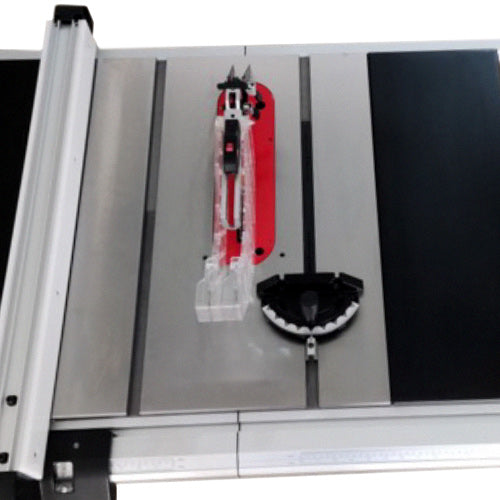

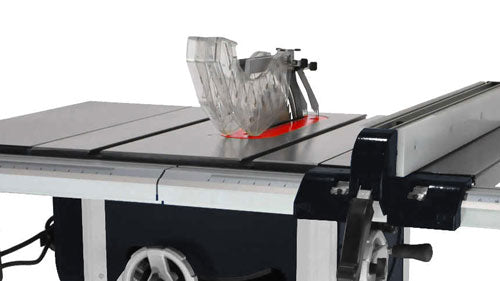

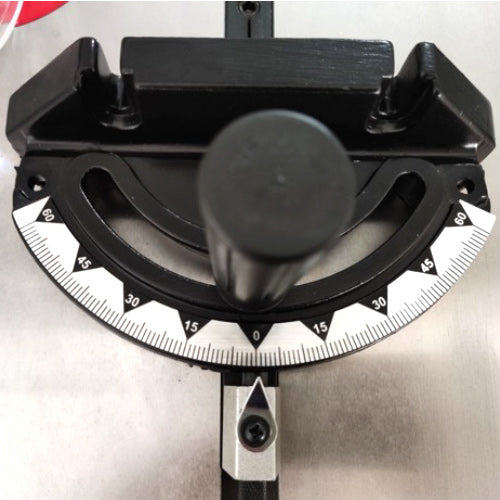

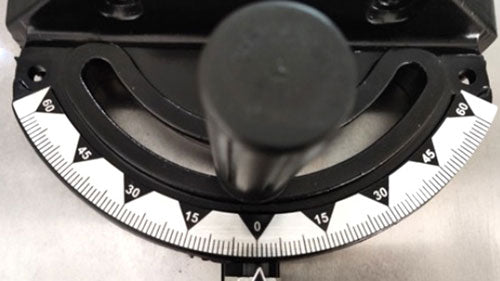

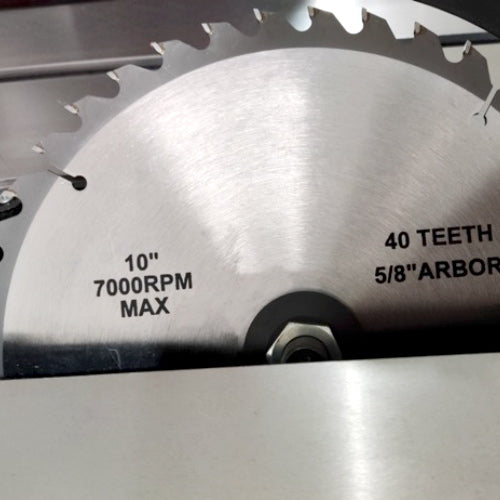

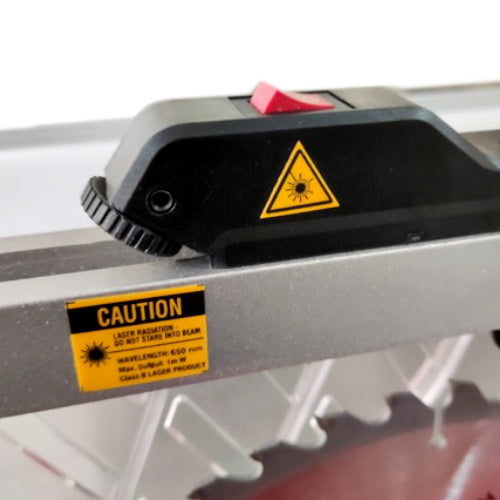

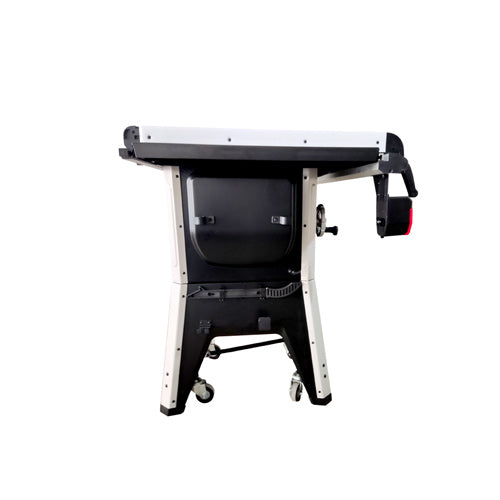

• 1 Phase 110V 15A 60Hz 2.4HP 1.8Kw Motor • Precision-ground cast-iron table with steel wings • Easy Lift-off Fence • Built-in Mobile Base • Bottom-facing 4” Dust Port • Clear blade guard with riving knife splitter and anti-kickback feature. • Includes a 10” x 40-tooth carbide-tipped blade • Laser Guide for extra accuracy • Included Miter Gauge, Push Stick and Blade Removal Tool
Technical Information Motor: 1 Phase 110V 15A 60Hz 2.4HP 1.8Kw Max Blade Diameter: 10” Main Blade Arbor: 3/4” Blade Speed: 3450 RPM Main Blade Max cutting Height at 90°: 3 1/8 ″ | 80mm Main Blade Cutting Height at 45°: 2 3/16″ | 55mm Max Rip Capacity Right: 29 1/2” Max Rip Capacity Left: 14 1/2” Cast Iron Table Dimensions (L X W): 27” x 20 1/8” Table Dimensions (L x W): 27” x 40” Floor To Tabletop: 37” Machine Dimensions (L x W x H): 34” x 56 3/4” x 45 1/2” Dust Port: 4” Net Weigh: 264LB / 120KG
